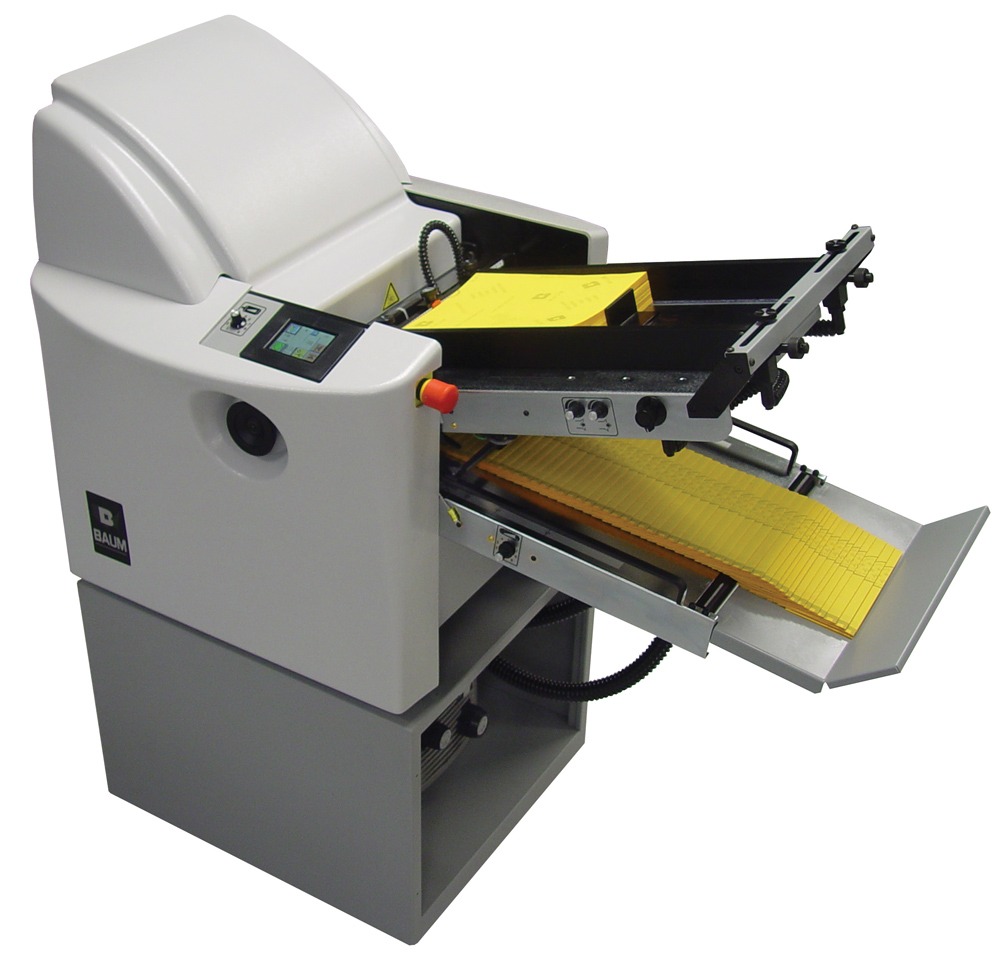

If you have the need to fold digital printed material the Baum 714XA AutoFold is your perfect solution. The 714XA is an easy to use, reliable, automated table top air feed folder specifically designed for the digital market. This heavy duty folder was designed and is manufactured by Baum in Sidney, Ohio USA. Baum continues to be the world market leader in tabletop folding machines with the 714XA.
Here are a few of the key features found on the 714XA:
- Capability to feed and fold 25.5 inch long paper for tri-folding brochures etc. (the 714XA is the only machine in this size and price range that can do this)
- Multiple job memory of 20 custom entry folds with easy recall
- PLC touch screen control panel with color display and easy to follow pictographs
- Batch counter than can count up or count down
- Baum Turbo Wheel air/vacuum feeding technology
- Non-marking, flip deflector fold plate technology
- Independent speed control, motorized delivery stacker
- Can have Baum 714XLT 2nd station right angle folder added
The 714XA is extremely easy to set up a new job.

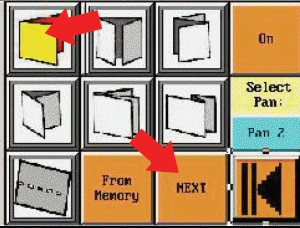

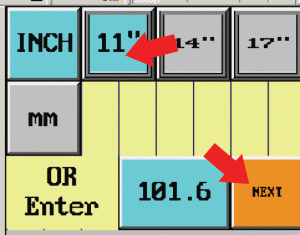

When you power up the 714XA the first thing you will see is the easy to read production screen. This is a touch screen control panel with color display and easy to follow pictographs. First you will select the type of fold that you want to make. Next you will enter the length of the sheet being folded. After selecting the length of the sheet, you will select NEXT on the screen. The lengths of standard paper sizes are shown and if you are going to fold one of these simply touch the appropriate one and it will turn blue indicating this is the size you have selected. On this screen you also have the option of selecting either inch or metric measurements.
If the sheet size is different than one of the three standard lengths shown you can enter this figure manually.
The initializing screen will appear to let you know that the fold pan stops are moving and that you have to wait until they are in position before you can do anything else. After the pans have reached the requested fold position, the Pans at Fold Position message will appear.
After the pans have reached the requested fold position, the PANS AT FOLD POSITION message will appear. Press the button to start the job.
For additional information, please visit us online at midstatelitho.com to be directed to Baum 714XA webpage.
