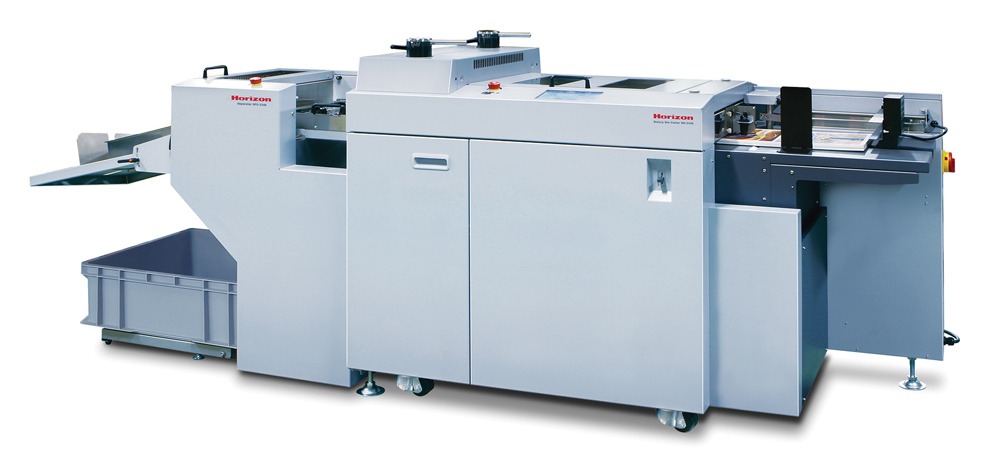

The NEW Horizon RD-3346 Rotary Die-Cut System is designed to meet the growing demand for short-run product. Compact and efficient rotary die-cut system reduces die cost with the repeat register function.
Suitable for small applications such as business cards and product tags. Flexible substrates can be run through for die cutting and kiss cutting for sheet thicknesses up to 0.35 mm / 0.013″.
Uniquely designed servo motor controlled “Repeat Register” feature allows multiple-up applications from single-up die to minimize die costs.
Now available for live demonstration at Graph Expo 2014! Registration for your FREE Attendee Badge has been extended – Register today!
Operation Console
The sheet size and die cutting position can be set through the intuitive touch screen. The graphical illustrations on the screen are simple and easy to understand. The error description will be displayed on the touch panel for quick error recovery.
Feeding and Registration
Vacuum belt feeding enables superior feeding with easy setup and operation. Sheets are firmly registered by the vacuum belt for accurate and consistent quality.
Die Cutting Section
Servo motor driven gripper rollers ensure the die cut position and also enables repeat register function to minimize die cost and imposition flexibility. Maximum production speed is 5,000 cycles per hour and up to 0.35 mm / 0.13″ thickness substrate can be run through.
Separator
The separator removes the waste from the finished product and delivers it into the waste bin. Only finished products is delivered on the delivery tray.
Delivery Section
Uniquely designed delivery catch tray neatly stacks finished product. Multiple up applications such as business cards can be stacked.
